Description
Brand New
Includes Two Year Warranty

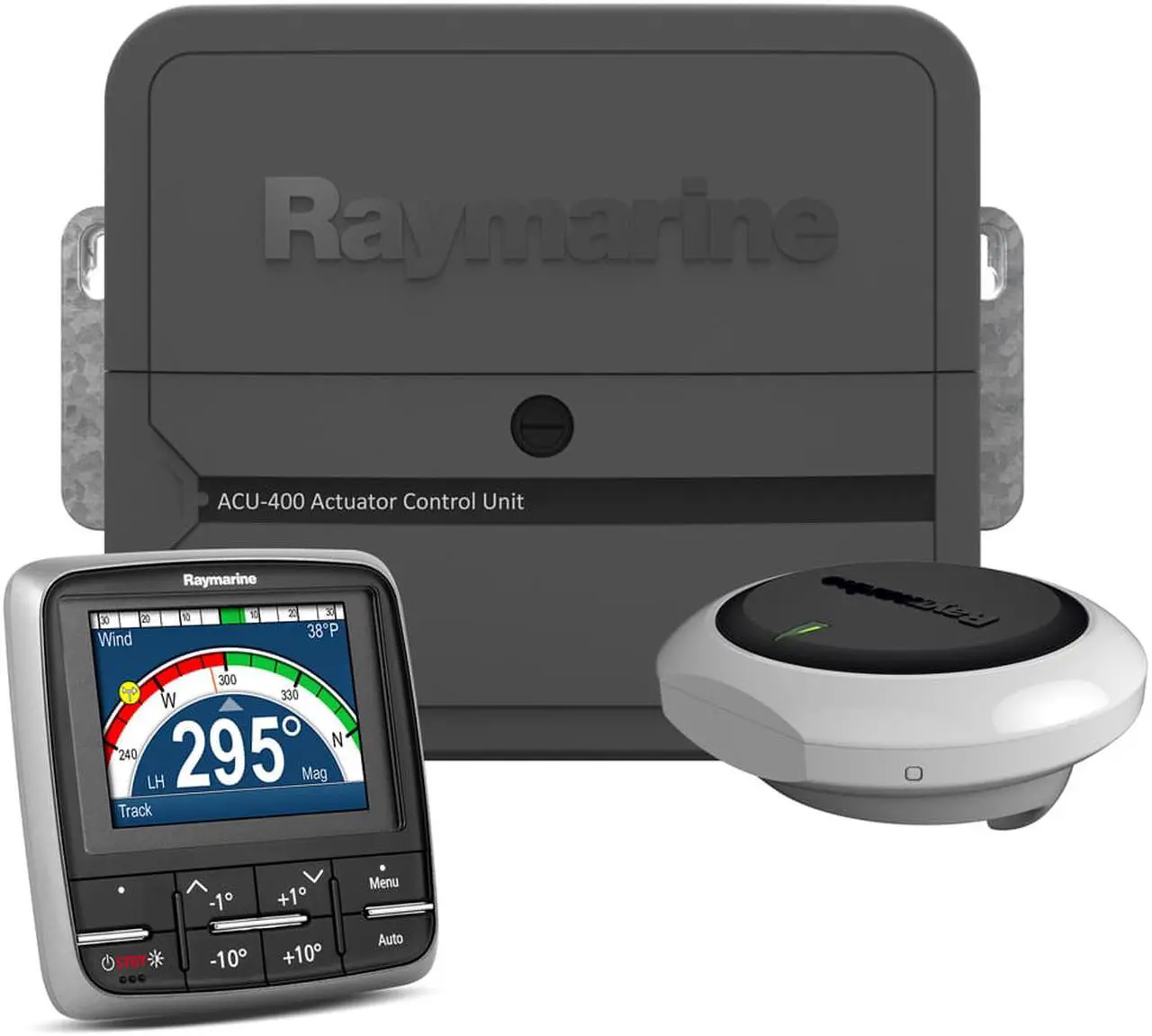

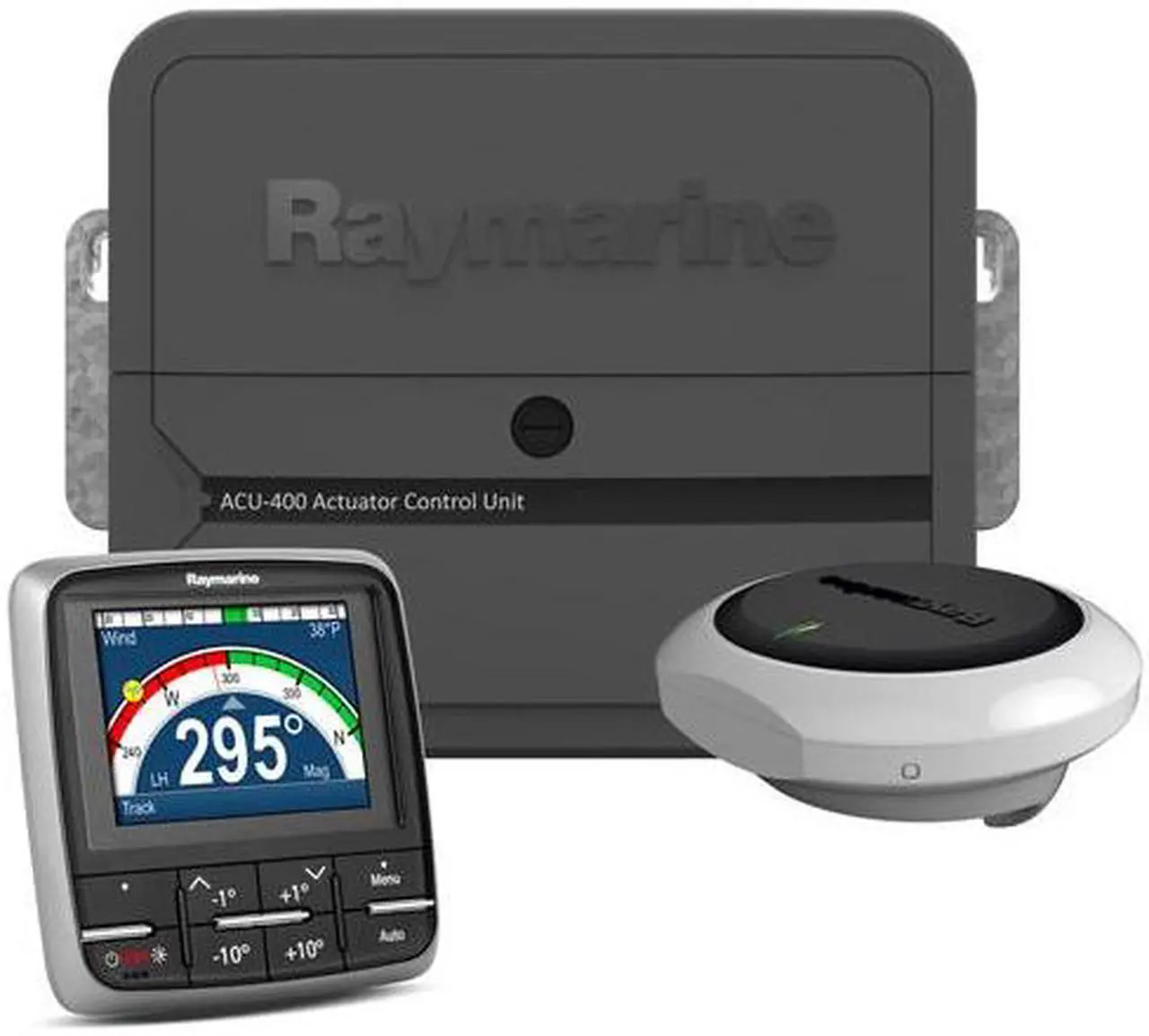

The Raymarine T70161 is a Sail evolution system package consisting of p70
autopilot control head, EV-1 sensor core and ACU-400 actuator control unit. The p70 is a
push-button operation controller and designed primarily for sailboats. The LED backlighting
delivers superior visibility day or night and ultra-low power
consumption. P70 also supports group dimming along with i70 Instruments and e7
multifunction displays. The EV-1 is designed for Evolution mechanical and hydraulic autopilot
systems. SeaTalkng networking enables a single cable connection for power.

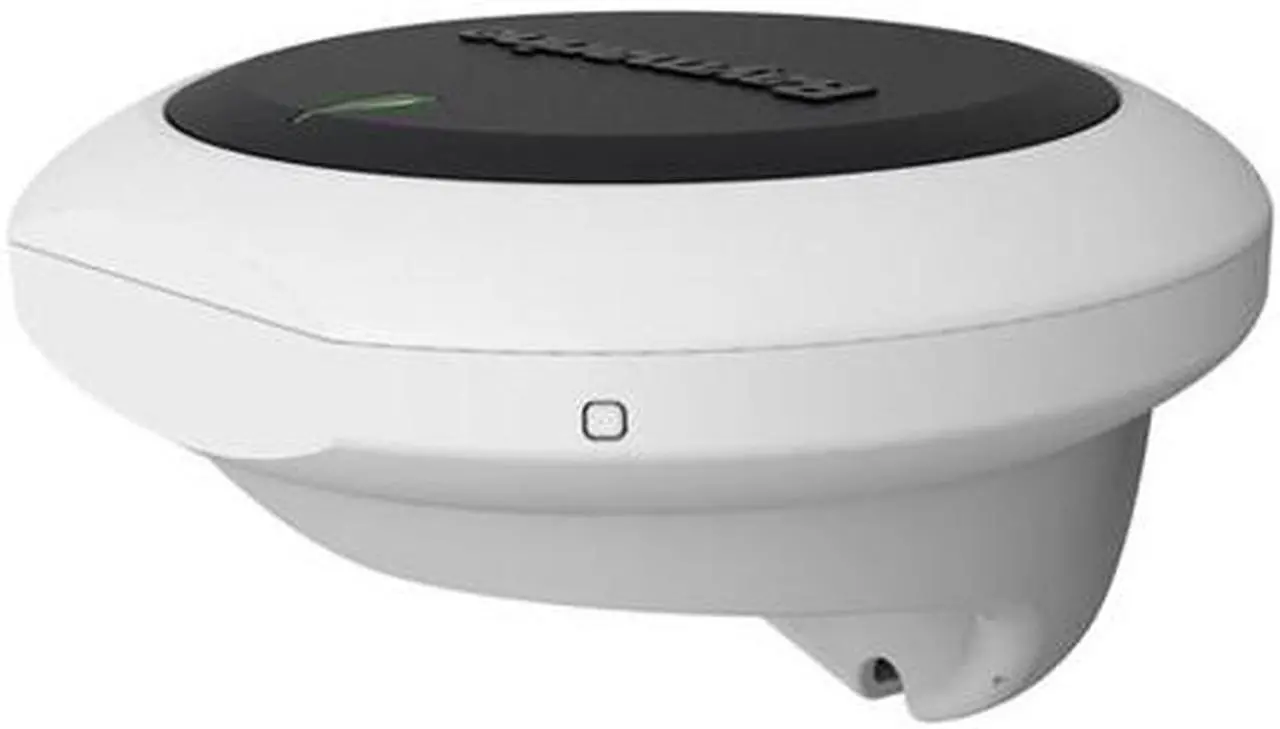

The EV sensor core, a 9-axis sensor that monitors vessel motion in all three
dimensions. The innovative EV sensor core combines advanced solid-state sensors with the
Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core
above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7

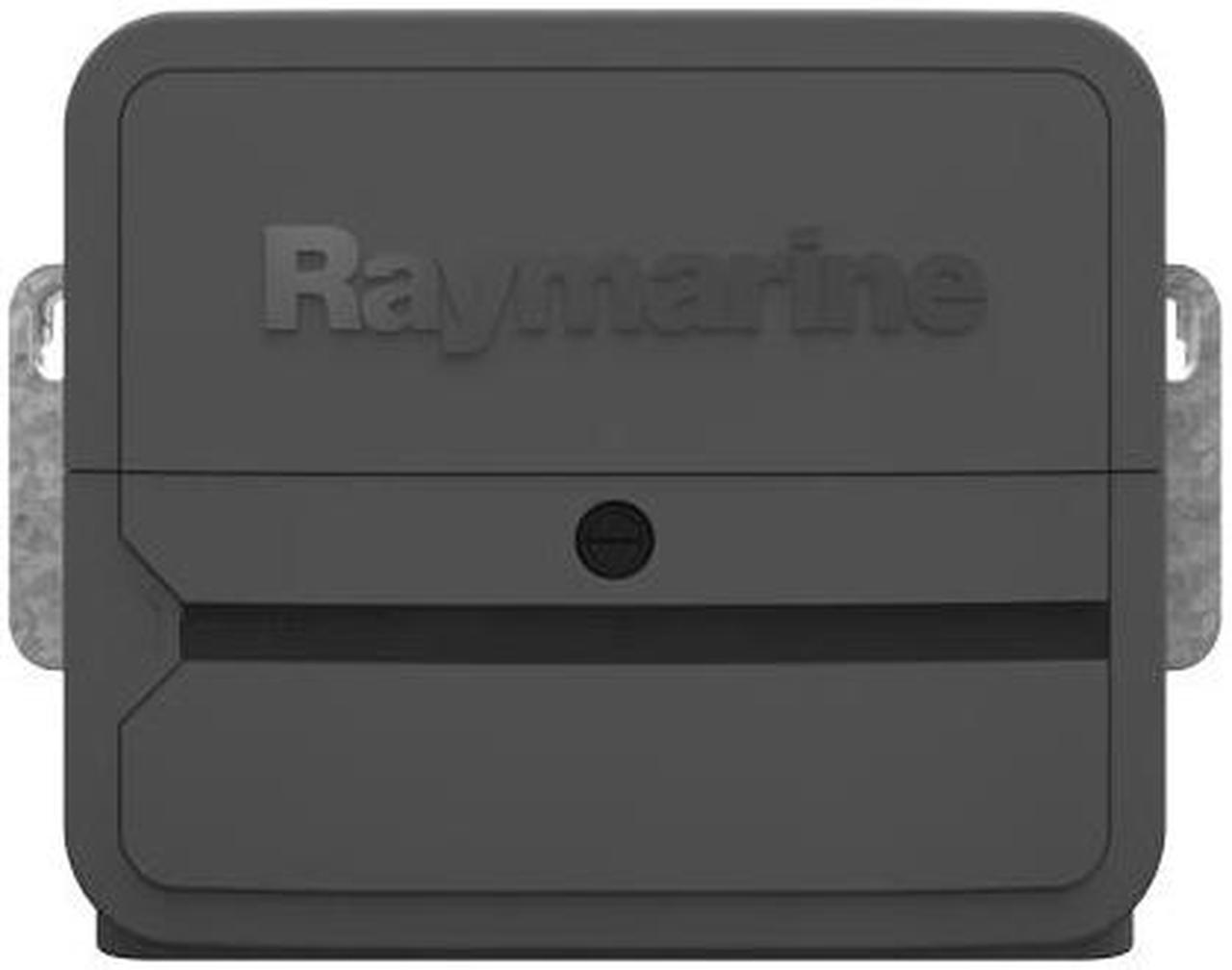

waterproofing and submersion standards. The rugged ACU (Actuator Control Unit)
delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
T70161 Features:
Product # T70161
EV-400 Autopilot System Package
New LightHouse User Interface
Wide 160° Viewing Angles
Start Up Wizard
– Configures The Pilot Quickly & Easily
Anti-Reflective Coating f/ Improved Visibility
Supported Autopilot Modes
– Auto
– Standby
– Pattern
– Track
– Wind Vane
– Power Steer
– Jog Steer
Simple System & Group Dimming/ Illumination
Support for Multiple Data Sources
SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity
EV Sensor Core
-Precision Monitoring Of Heading, Pitch, Roll & Yaw
-Flexible Installation Options
-Solid State Sensor Technology
-Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes
IPX6 & IPX7 Waterproof
Supports Type 2 & 3 Raymarine Hydraulic Linear & Rotary Mechanical Drives
Designed for Large Sailing Vessels, Type 2 & Type 3 Drives
Includes:
EV-1 Sensor Core
p70 Autopilot Control Head
ACU-400 Actuator Control Unit
